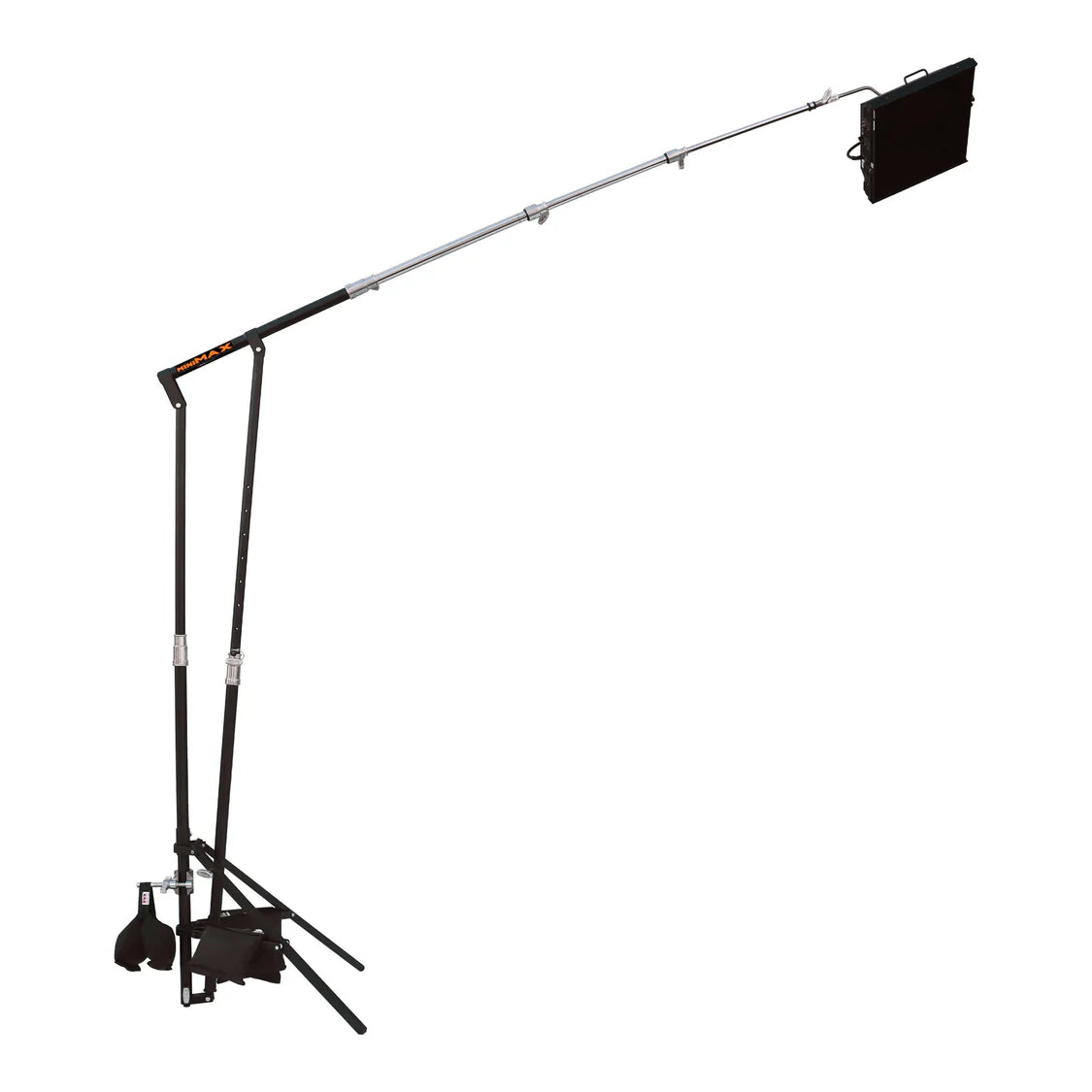

Mini MAX is the smaller compact version of Matthews' very successful and very popular MAX. Like its larger counterpart, Mini MAX allows you to hang a fixture in places where no other lighting support system may go - either into a corner or flush to the wall - as there are neither rear rails nor pipes required for counterbalance. When the POV will not accommodate a stand or fixture placement, Mini MAX can 'fly' right in, making it possible to strategically place either a Key Light, Top Light or Back Light.
Mini MAX can support a 20lb (9.1kg) fixture 8ft (243cm) high on a 8ft (243cm) horizontal extension. Mini MAX will operate on a 105" (265cm) maximum arc from 16ft (489cm) high to 3ft (92cm) below horizontal. Mini MAX features 3 Rocky Mountain Legs for non-level terrain, stairs or curbs without the need for Apple Boxes.
Weight: 44lbs (20kg)
Features and Benefits
- V-shaped brass brakes ensuring 3-point strong contact.
- Thick threaded collars ensuring a solid bite from t-handles and set screws.
- Knurled baby pin ensures whatever is being mounted stays put.
- Three Rocky Mountain Legs allowing stand to be leveled on non-level terrain.
- Allows fixtures to be placed in tight spaces, corners, or flush against walls, without needing rear rails or counterbalance pipes.
- Can "fly" into position for strategic placement of Key Light, Top Light, or Back Light.
- Supports a fixture up to 20 lbs (9.1 kg) with an 8 ft (243 cm) horizontal extension.
- Operates on a 105" (265 cm) maximum arc from 16 ft (489 cm) high to 3 ft (92 cm) below horizontal.
