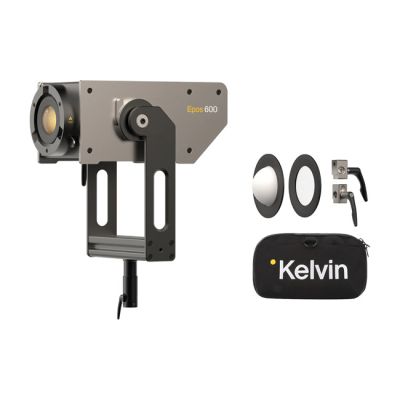

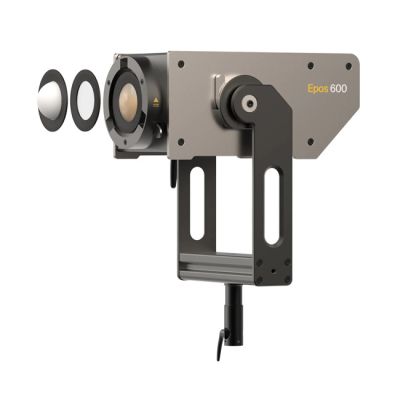

Kelvin Epos 600 Light Kit (including Rolling Case)

Kelvin Epos 600 Light Kit (including Rolling Case)

Your super hero on any lighting set.

Made to withstand life on set and deliver mind-blowing light accuracy and control.

• 600 W Full Spectrum LED COB Studio Light
• Accessories for Epos 600
• Cantastoria™ RGBACL Six-Color Light Engine (patent pending)
• CRI 97+ | TM30 Rf95+ / Rg 100+ | TLCI 99 | CQS 97 | SSI 84 @3200 K | SSI 74 @5600K
• 1,700K to 20,000K CCT
• IP rating 65 weather proof in 6 mm aluminium housing
• 5” Touch Display
• Machined Bowens mount with Kelvin MagTech™ (proprietary)
• DMX 5-Pin XLR and wireless via CRMX (TiMo2 by Lumen Radio)
• Art-Net, sACN, and BLE & Kelvin Narrator App
• 5 kg / 12.1 lbs (lamp head) + 2.2 kg / 4.9 lbs (yoke)

Light Fixture

Light Engine - Cantastoria - Six-Color light engine Red, Green, Blue, Amber, Cyan, and Lime
IP Rating - 65
Color Temperature - 1,700 K to 20,000 K +/- 1/8 G/M
Modes - CCT, HSI, RGB, XY, Gels, Effects
Dimming - 0-100% (continuous)
Display - 5'' TFT LCD Touch Screen
Housing Material - Aluminum
Number of LEDs - 200
Expected Lamp Life - 50 000 hours
Beam Angle native, without optical modifier - 93°
Beam Angle Kelvin Bowens Mount Reflector - 62°
Beam Angle Kelvin Bowens Mount Reflector - 55°

Controller

Battery Input - 1 x XLR 48 VDC
DMX Connection - 5-Pin XLR
Power Input Connection - powerCON True 1
USB - USB-C
IP Rating - 65

Mounting

Yoke Mount - Kelvin Epos 600 Yoke (360° tilt)
Accessory Mount - Bowens S-Type with Kelvin MagTech™ (proprietary)
Fixture Mount - 1-1/8" stud (junior pin) and 5/8" receiver (baby pin)
Mount for Diffusers, Intensifiers, and Accessories - Kelvin MagTech™

Remote Operation

Control - DMX 512, Wireless DMX/CRMX (TiMo2) by Lumen Radio Art-Net, sACN, Bluetooth Kelvin Narrator App
Bluetooth - Wireless Operating Range: ≤100 m
Lumen Radio - Wireless Operating Range: ≤100 m

Power

AC Input Power - 100 ~ 230 V AC +/-10%, 50/60 Hz
AC PowerCON Output - Yes
DC Input Power - 48 V DC
Power Source - AC mains, External Battery Power Stations and Block Batteries
Max Power Consumption - 600 W (nominal) | 720 W (rated)
Battery Input - 3-Pin XLR 48 V DV
Battery Voltage Range - 46 to 50 VDC
Power Pass-Thru - Yes
Operating Temperature - -4 to 113°F | -20 to 45°C

Cable

Head to Ballast Cable - 8 m / 26.2 ft with Neutrik 10-Pin XLR
AC Power Cable - 8 m / 26.2 ft with Neutrik powerCON TRUE1

What’s In the Box?

• Kelvin Epos 600 lamp head

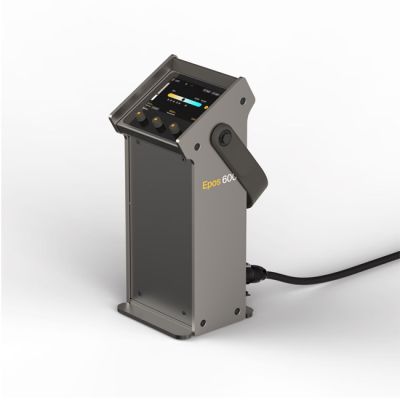

• Kelvin Epos 600 controller & PSU
• 1 x Kelvin High Performance Lens for Epos Series
• 1 x Kelvin Epos Dome Diffuser
• 1 x Kelvin Epos Medium Diffuser D90
• 1 x Kelvin Epos Umbrella Mount
• 1 x Kelvin Travel Pouch for Lighting, Video and Photo Accessory
• 1 x Kelvin Epos Reflector (62°)
• Kelvin Epos 600 10-pin XLR head cable (8 m / 26.2 ft)
• Neutrik powerCON True1 AC power cable (8 m / 26.2 ft)
• Kelvin Epos 600 rolling case
• Protective cap for Epos 600 controller
• Quick release lighting super clamp
• 3 Years Keep Rolling Warranty™
• Lifetime customer support
