FreeStyle T42 / T44 DMX System Universal

Kino Flo® Lighting Systems’ True Match® FreeStyle LED tubes are specially designed for operation in FreeStyle T44 & T24 fixtures for film production or stage design lighting. The FreeStyle LED tubes display Kino Flo’s True Match white light and RGBWW color management system found in Kino Flo’s LED lighting fixtures.

The tubes are 4ft (1.2m) & 2ft (0.6m). On camera, FreeStyle LED tubes photograph with the same softness, the same subtle color reproduction as Kino Flo’s award-winning T12 high-output lamps. In addition to high color rendering, cinematographers will see the difference the 310° LED tube makes when operated in a fixture or out of the fixture as a remote “sabre” of light. Paired with the FreeStyle fixture and light intensifying reflector, the tube projects soft light forward at a 100° beam angle at about the same light levels you’d get from a 1000W tungsten softlight.

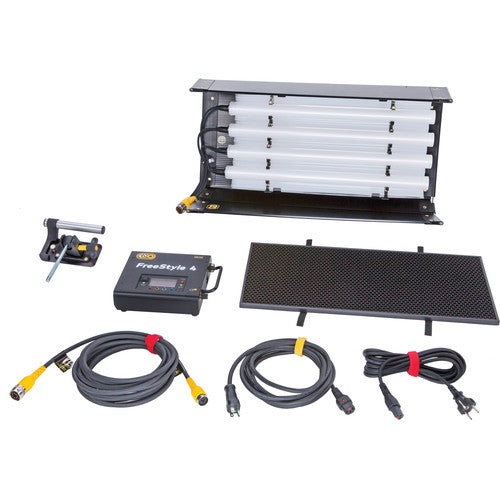

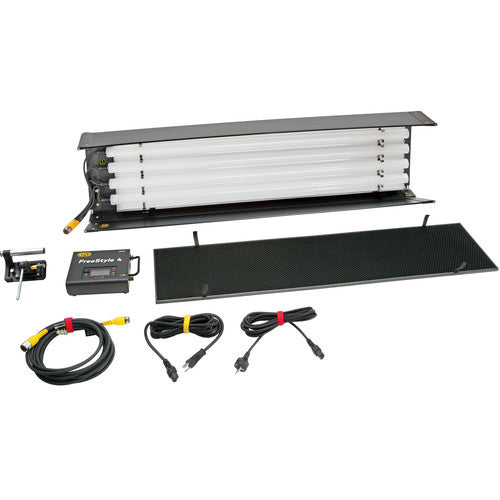

The FreeStyle T44/T24 LED System (SYS-FT44U/SYS-FT24U) consists of:
FreeStyle T44/T24 LED Fixture plus 4 x FS-48 LED Tubes or 4 x FS-24 LED Tubes, Mounting Plate, FreeStyle 140X LED DMX Controller, and Extension Cable.

It was designed in this manner to allow the greatest flexibility in lighting solutions for challenging situations.

FreeStyle T44/T24 LED Features

Color Rendering TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
Kelvin presets
Dial-in color temperature control between 2500K-9900K
Green/Magenta Control
Hue angle and Saturation adjustments
Kino Flo presets and Gels
RGB control
CIE xy
FX Control
Camera Profiles LUTs
Color Space
Works with Apps with predetermined RGB presets or color wheels
Can use preset buttons to store custom Kelvin settings
Light levels do not change when selecting Kelvin settings
No color shift while dimming
Universal input 100VAC-240VAC or 24VDC
Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC
Flicker-free, quiet operation
Full range onboard and DMX dimming
DMX wireless link (Lumen Radio®)
DMX Auto Terminate
The firmware is updatable from a PC using the Mini B USB data Port
T44 Dims: 52 x 3.5 x 13” w/ 6.5” brndr (132 x 9 x 33cm w 16.5cm brndr)
Weight w/ Tubes: 12.5 lb (6kg)
T24 Dims: 28 x 3.5 x 13” w/ 6.5” brndr (71 x 9 x 33cm w/ 16.5cm brndr)
Weight w/ Tubes: 8 lb (4kg)

FreeStyle T44/T24 LED Design

Remote fixture with built-in barndoors
Fixture includes removable 90° Honeycomb Louver
KinoGrip Center Mount
Lightweight, slim profile
Mounts to stand, light enough to be hand-held
FreeStyle Tubes

FreeStyle T44/T24 LED Modular Design

The FreeStyle T44/T24 Fixture houses the tubes and is comprised of built-in barndoors, a Louver, Reflector and Tube Harness. The Louver and Reflector are held in place with Velcro fasteners.

There is a strain relief on the tube Harness to ensure the connectors don’t pull off the tubes during operation. To get the harness away from the fixture, turn the 1/4 turn fastener and rotate counter-clockwise to release.
