Kino Flo® Lighting Systems’ True Match® FreeStyle LED tubes are specially designed for operation in FreeStyle T41 & T21 fixtures for film production or stage design lighting. The FreeStyle LED tubes display Kino Flo’s True Match white light and RGBWW color management system found in Kino Flo’s LED lighting fixtures.

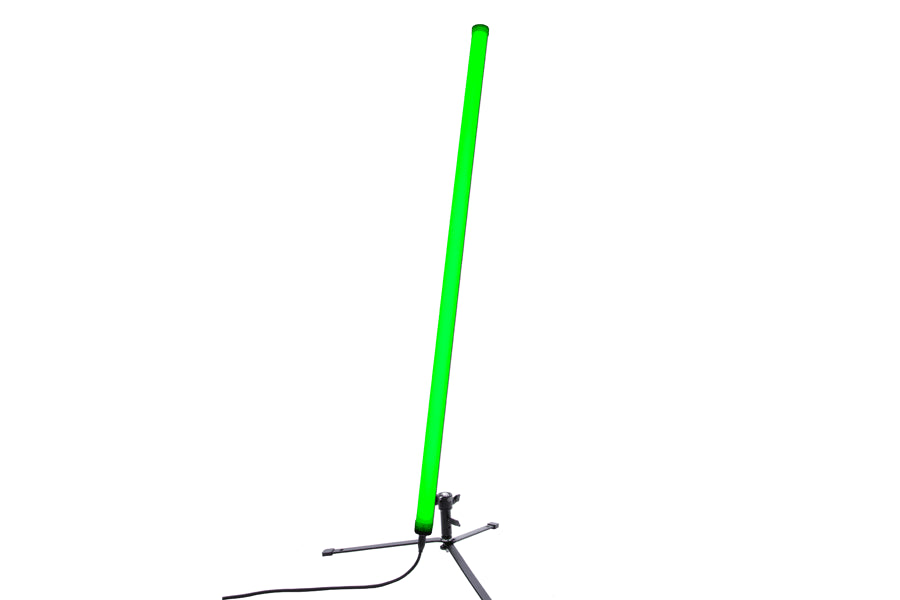

The tubes are 4ft (1.2m) & 2ft (0.6m). On camera, FreeStyle LED tubes photograph with the same softness, the same subtle color reproduction as Kino Flo’s award-winning T12 high-output lamps. In addition to high color rendering, cinematographers will see the difference the 310° LED tube makes when operated in a fixture or out of the fixture as a remote “sabre” of light. Paired with the FreeStyle fixture and light intensifying reflector, the tube projects soft light forward at a 100° beam angle at about the same light levels you’d get from a 1000W tungsten softlight.

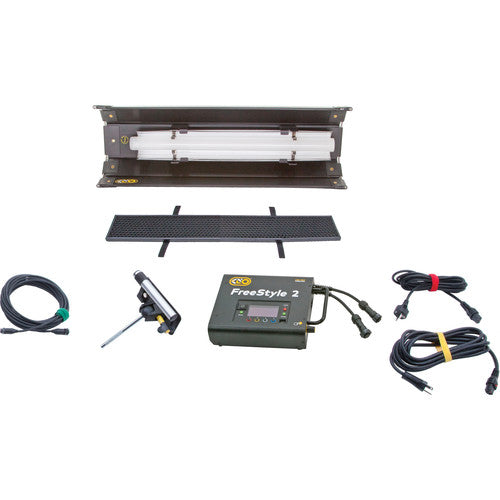

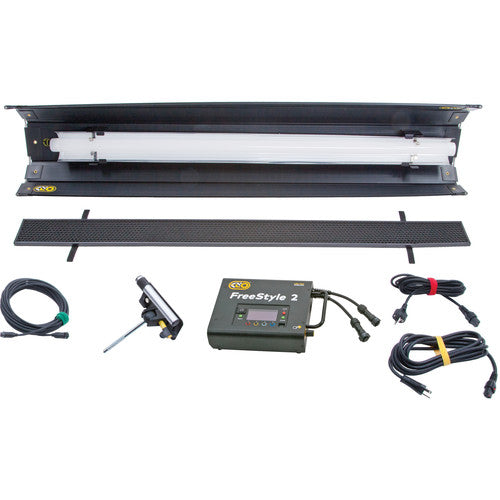

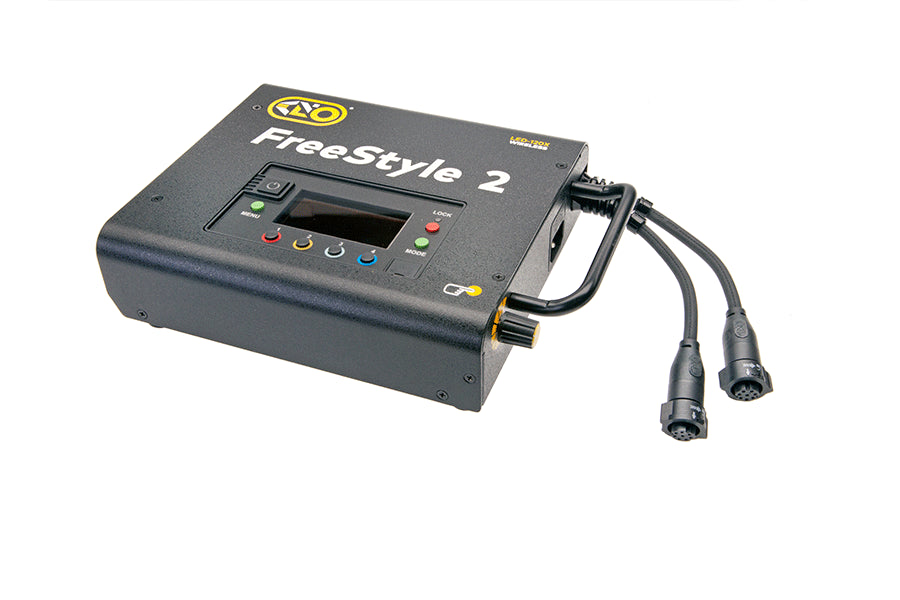

The FreeStyle T41/T21 LED System (SYS-FT41U/SYS-FT21U) consists of: FreeStyle T41/T21 LED Fixture plus 1 x FS-48 LED Tube or
1 x FS-24 LED Tube, Mounting Plate, FreeStyle 120X LED DMX Controller, and Extension Cable.
It was designed in this manner to allow the greatest flexibility in lighting solutions for challenging situations.
FreeStyle T41/T21 LED Features
- Color Rendering TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
- Kelvin presets
- Dial-in color temperature control between 2500K-9900K
- Green/Magenta Control
- Hue angle and Saturation adjustments
- Kino Flo presets and Gels
- RGB control
- CIE xy
- FX Control
- Camera Profiles LUTs
- Color Space
- Works with Apps with predetermined RGB presets or color wheels
- Can use preset buttons to store custom Kelvin settings
- Light levels do not change when selecting Kelvin settings
- No color shift while dimming
- Universal input 100VAC-240VAC or 24VDC
- Energy efficient, draws 0.83A, 120VAC and 4.2A, 24VDC
- Flicker-free, quiet operation
- Full range onboard and DMX dimming
- DMX wireless link (Lumen Radio®)
- DMX Auto Terminate
- The firmware is updatable from a PC using the Mini B USB data Port
- T41 Dims: 52 x 5.5 x 4” w/ 3.5” brndr (132 x 14 x 10cm w/ 9cm brndr)
- Weight w/ Tube: 4 lb (2kg)
- T21 Dims: 28 x 5.5 x 4” w/ 3.5” brndr (71 x 14 x 10cm w/ 9cm brndr)
- Weight w/ Tube: 2.5 lb (1kg)

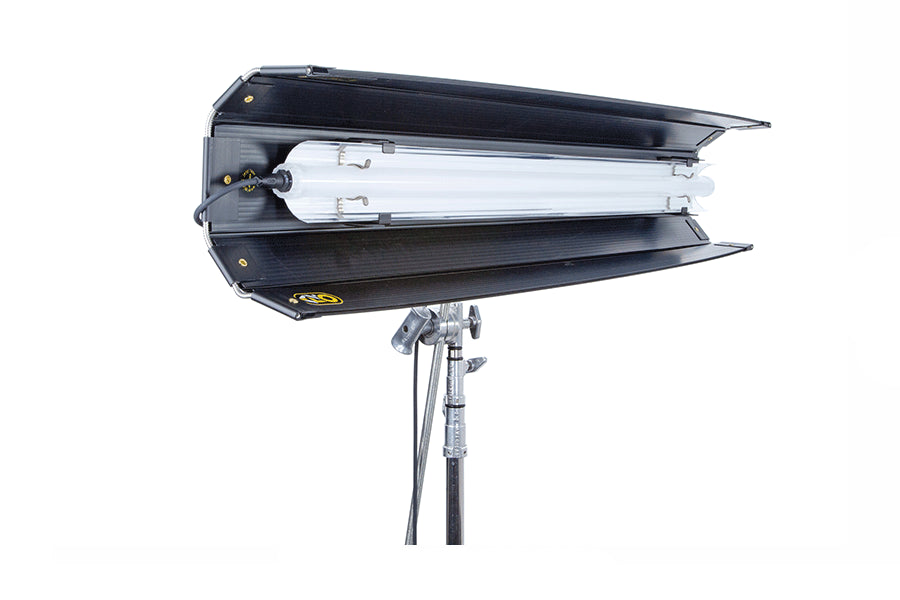

FreeStyle T41/T21 LED Design
- Remote fixture with built-in barndoors
- Fixture includes removable 90° Honeycomb Louver
- KinoGrip Center Mount
- Lightweight, slim profile
- Mounts to stand, light enough to be hand-held FreeStyle Tubes
FreeStyle T41/T21 LED Modular Design
The FreeStyle T41/T21 Fixture houses the tubes and is comprised of built-in barndoors, a Louver and Reflector. The Louver and Reflector are held in place with Velcro fasteners.
