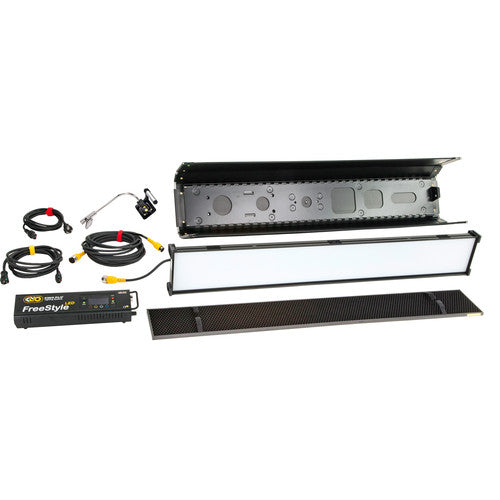

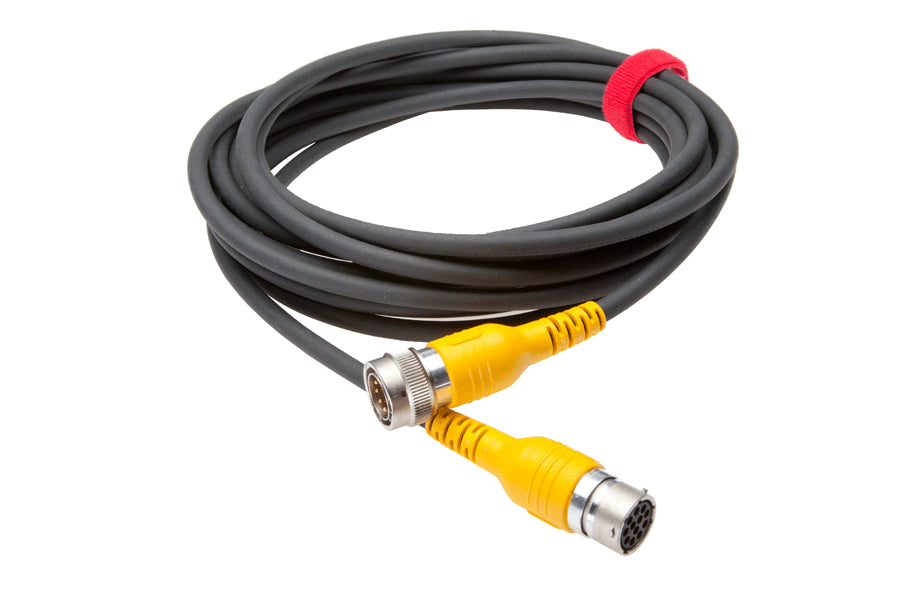

Kino Flo’s award-winning FreeStyle 41 unleashes your creative side with a quick-release feature to remove the LED panel from the fixture, cutting the weight nearly in half (from 16 lbs/7.3kg to 9.6 lbs/4.4kg) and creating a smaller form factor for better rigging flexibility. The LED panel’s corner bumpers can be used to hang from rope or wire. The panel also takes a Twist-On mount for working on light stands. The Freestyle 41 comes complete with the full color, programmable FreeStyle controller, Head Cable (25ft), Complete Fixture with removable LED panel, and a twist-on KinoGrip Center Mount. Honeycomb 90° or 60° louvers, mounted with Velcro, give direction to the light, and when removed the panel displays a broad soft beam across the set.
FreeStyle 41 Features
- Color Rendering TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
- Kelvin presets
- Dial-in color temperature control between 2500K-9900K
- Green/Magenta Control
- Hue angle and Saturation adjustments
- Kino Flo presets and Gels
- RGB control
- CIE xy
- FX Control
- Camera Profiles LUTs
- Color Space
- Works with Apps with predetermined RGB presets or color wheels
- Can use preset buttons to store custom Kelvin settings
- Light levels do not change when selecting Kelvin settings
- No color shift while dimming
- Universal input 100VAC-240VAC or 24VDC
- Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC
- Flicker-free, quiet operation
- Full range onboard and DMX dimming
- DMX wireless link (Lumen Radio®)
- DMX Auto Terminate
- Dimensions: 52.5 x 4 x 9” w/ 6” brndr (133 x 10 x 23cm w/ 15cm brndr)
- Weight: 16 lb (7kg)
FreeStyle 41 Design
- Remote fixture with built-in barndoors

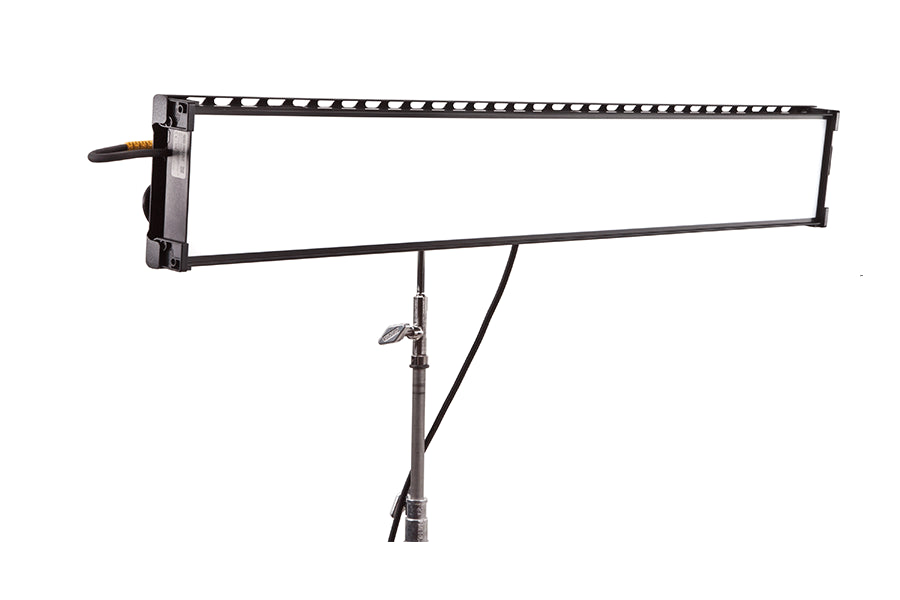

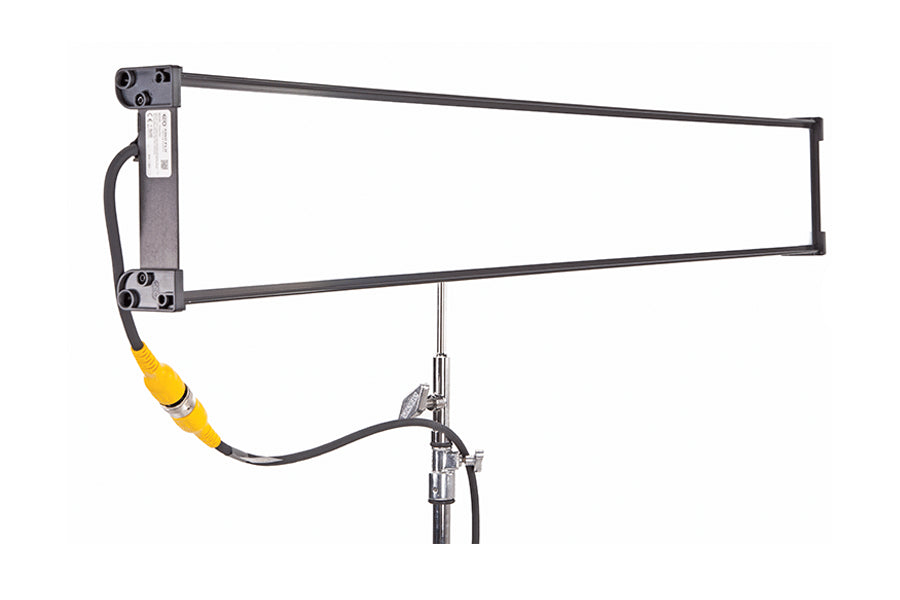

- Removable LED panel with center mount and molded corner mounts

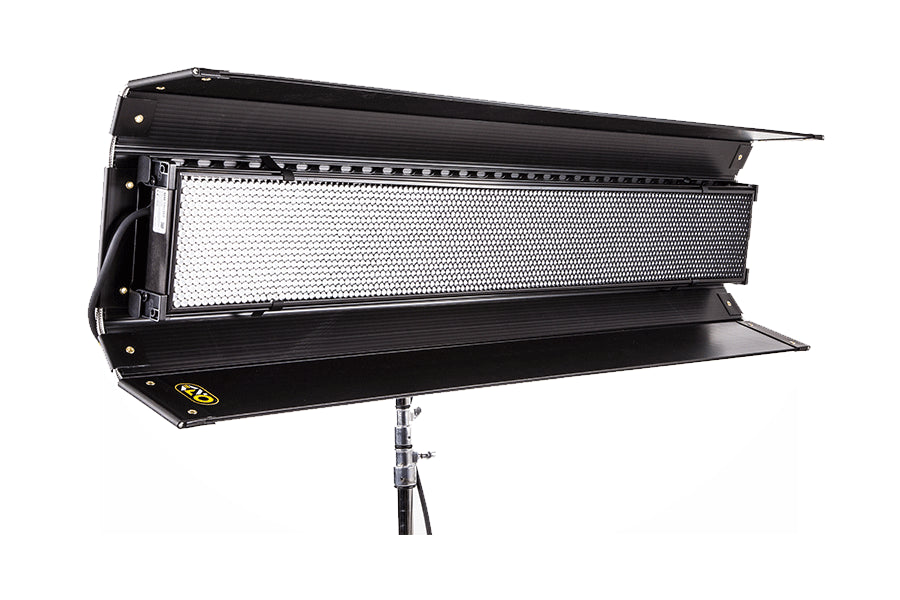

- Fixture includes removable 90° Honeycomb Louver
- Honeycomb louver also available in 60° as accessory
- Removable Center Mount
- KinoGrip Center Mount
- Lightweight, slim profile
- Mounts to stand, light enough to be hand-held

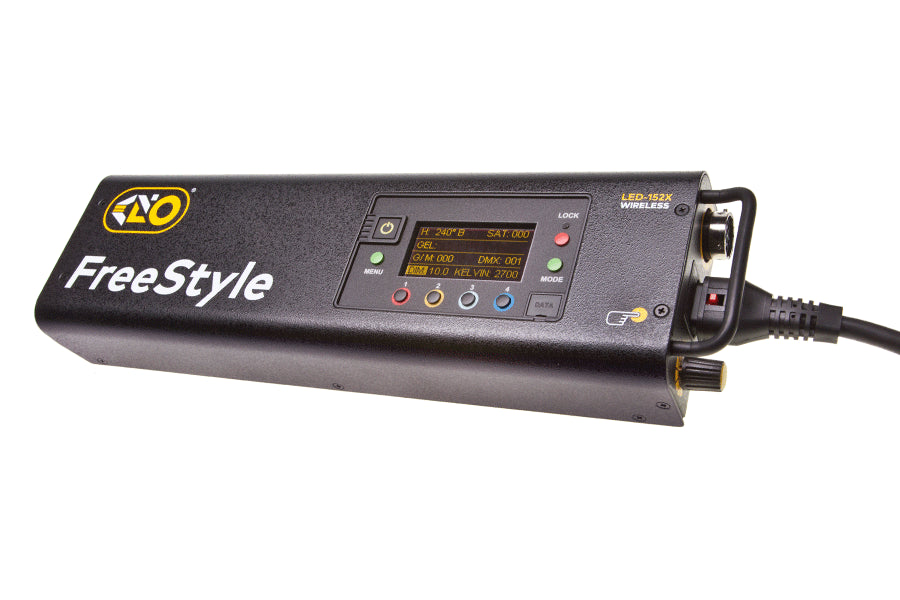

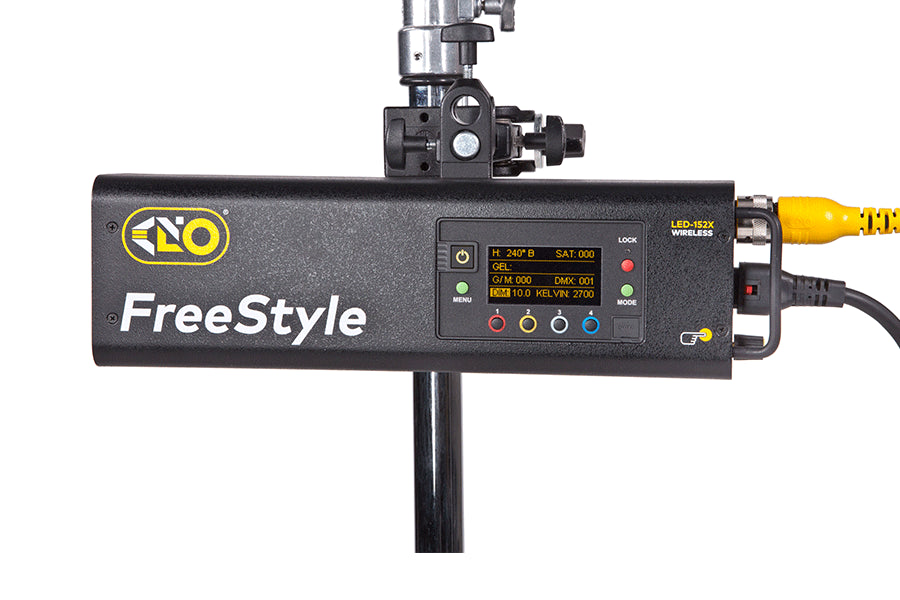

- Controller operates remotely with extension cable
FreeStyle 41 Modular Design

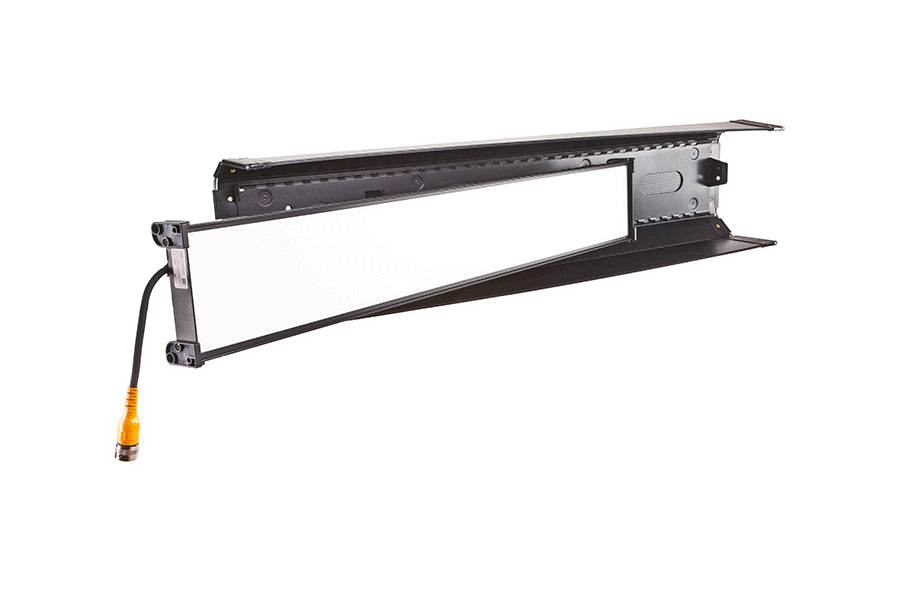

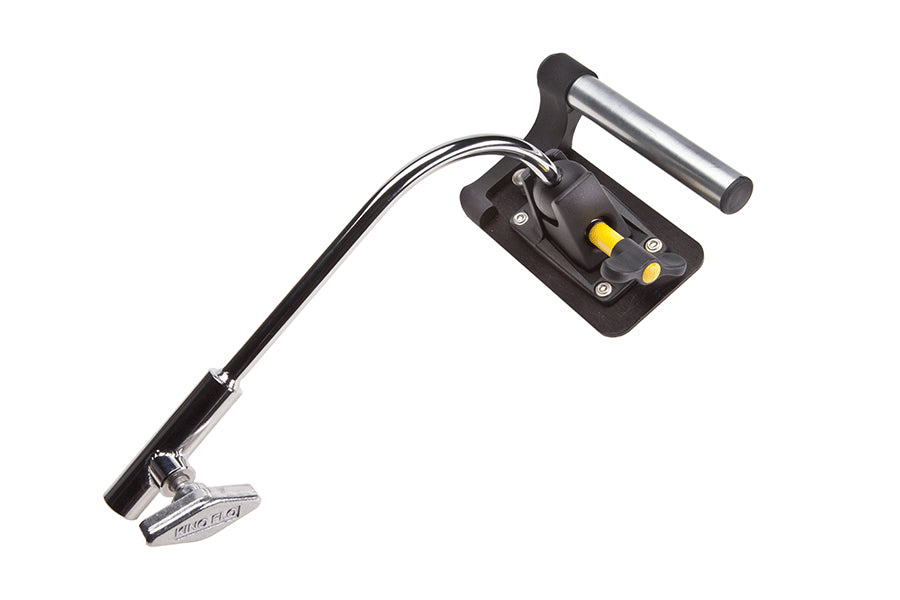

The FreeStyle LED fixture’s modular design includes built-in barndoors, a removable LED panel and removable louver. The louver is held in place with Velcro fasteners. The LED panel can be removed from the fixture housing by pressing the locking pin and turning the thumbscrew. The fixture and removable LED panel have twist-on mating plates to accept a twist-on mount. The four molded corners offer additional rigging points for rope hanging, for example. With the KinoGrip mount, the fixture or LED panel can be hand-held. When the mount is removed, the fixture is flat and can be screwed to the wall or ceiling through its eyelets. The FreeStyle 152 LED DMX Controller firmware is updatable from a PC using the Mini B USB data port.
